MEASUREMAN 4' dial, High Precision Hydraulic Industrial Digital Pressu

MEASUREMAN 4' dial, High Precision Hydraulic Industrial Digital Pressure Gauge 0-10000psi/bar, 1/4' NPT Lower, Stainless Steel Case and Connection, 0.4%,Battery and Micro USB Powered, with LED Light

$39.39 $109.97

Description
For hydraulic, oil pressure, water pressure, high pressure, air pressure measuring, for media which is not corrosive to stainless steel wetted parts

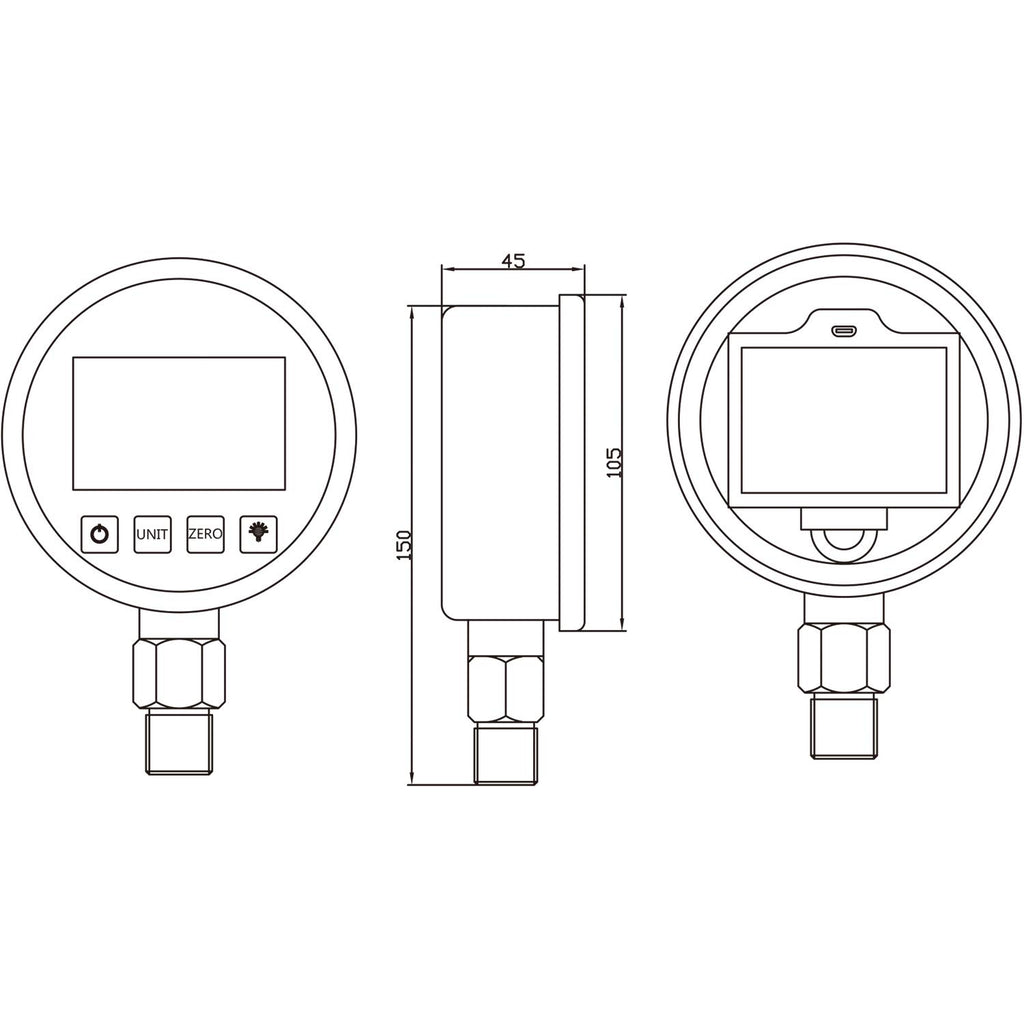

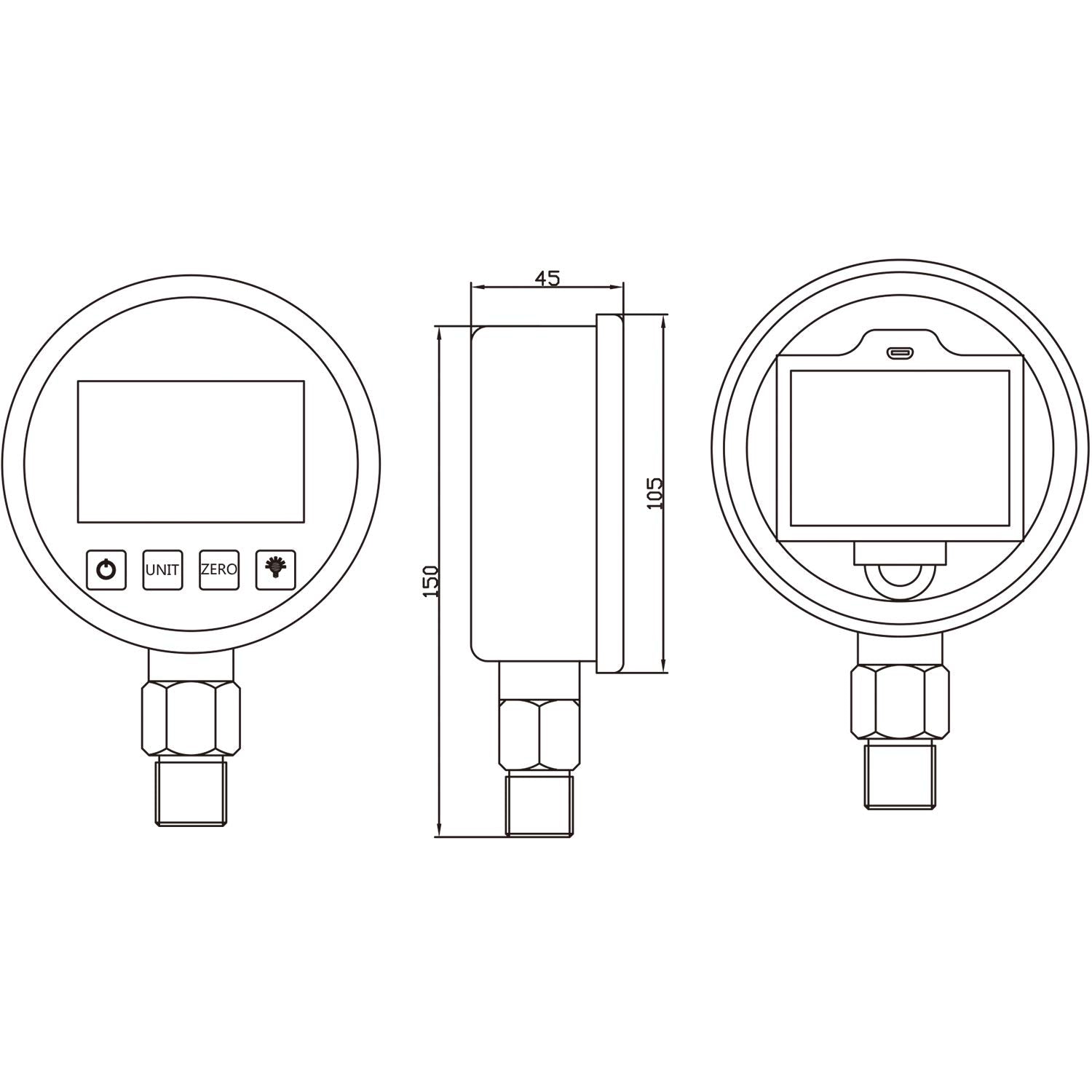

Dial size : 4'
Pressure Range : 0-10000psi, bar, kg/cm2, Mpa 5 digit display, 4 units, 700bar, 10000psi, 70Mpa, 700kg/cm2, 150% over load

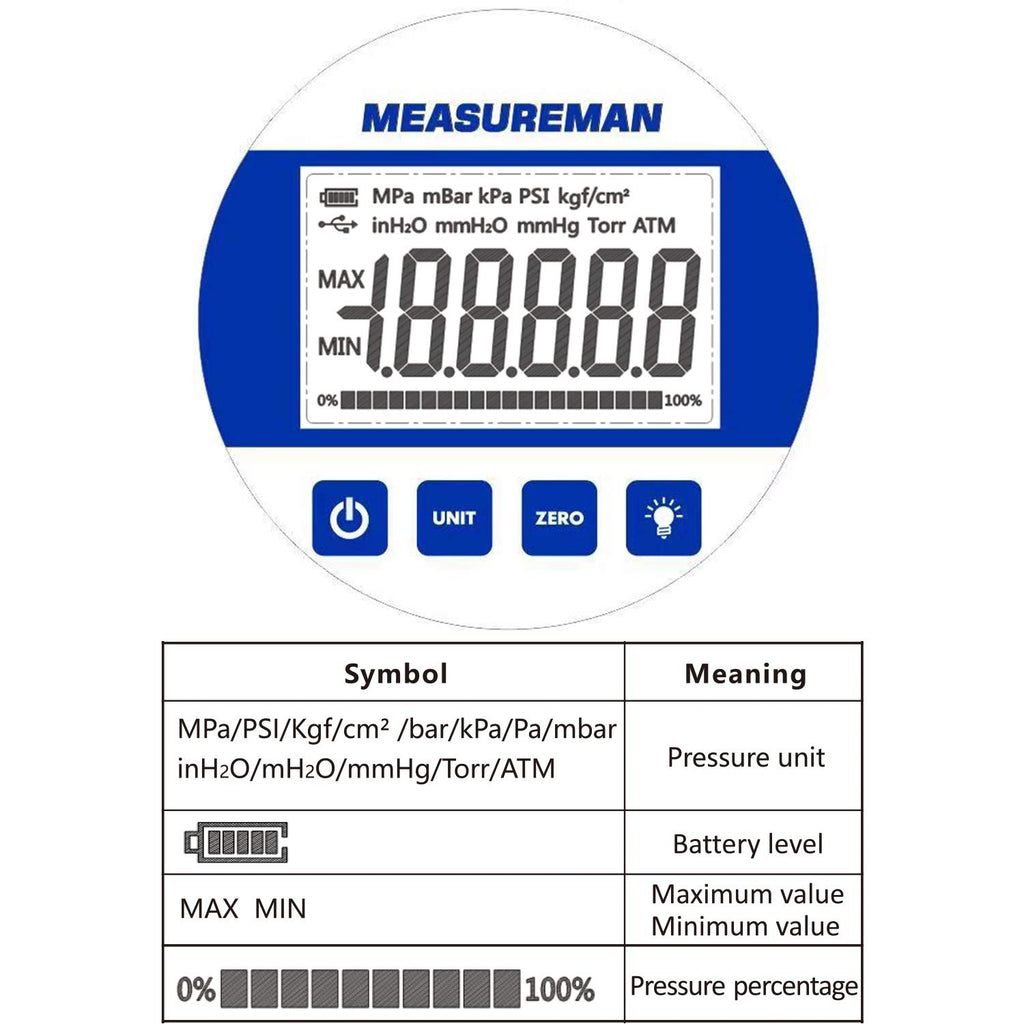

Batteries status display
Pressure progress bar
Min-Max pressure record

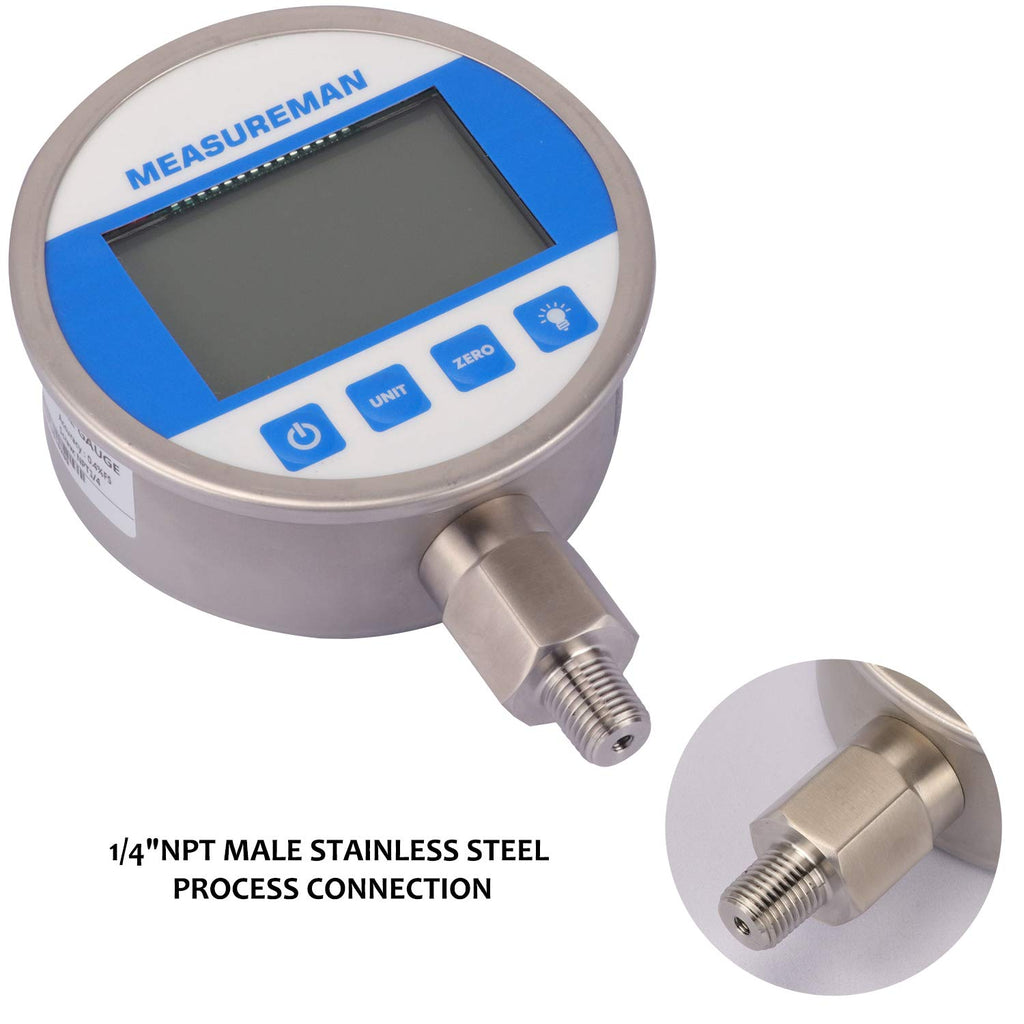

Process connection : 1/4'NPT male, lower mount
Overload Capacity : 150%

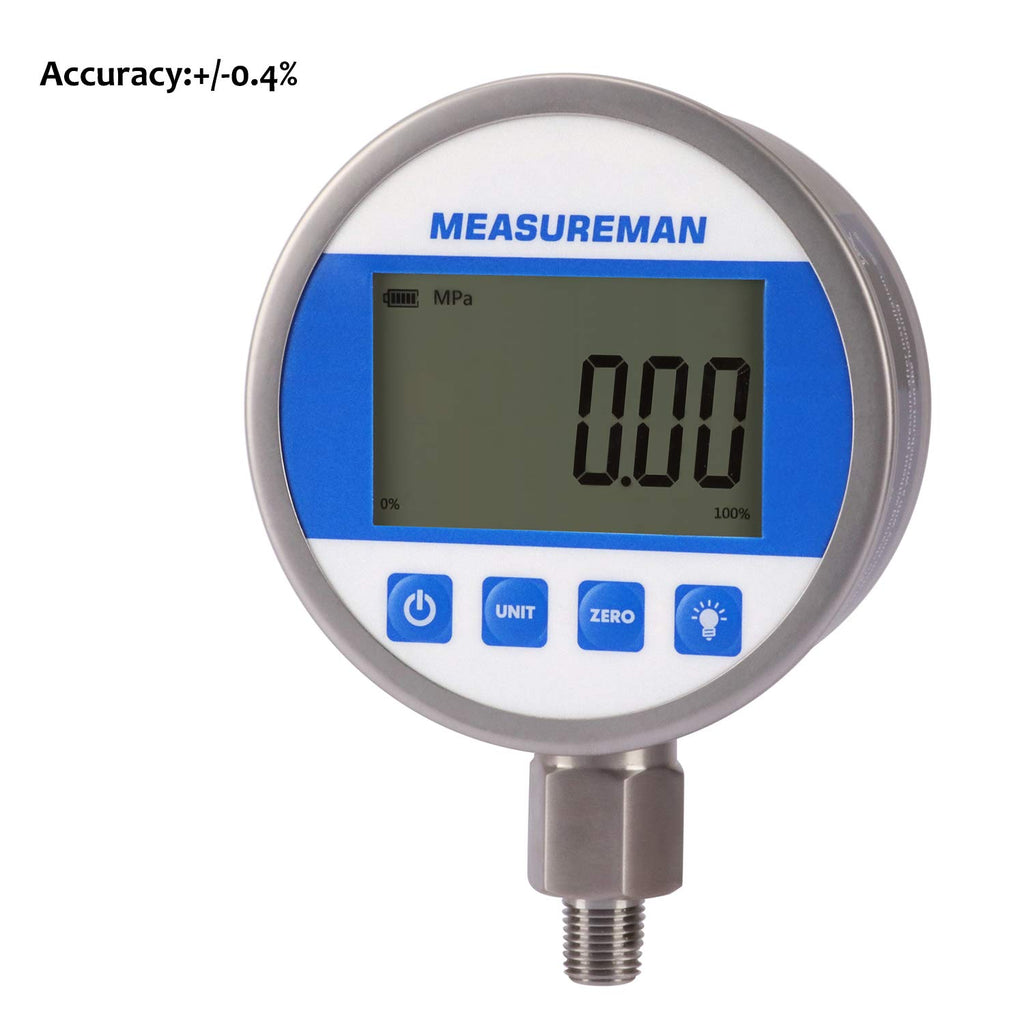

Accuracy : 0.4%

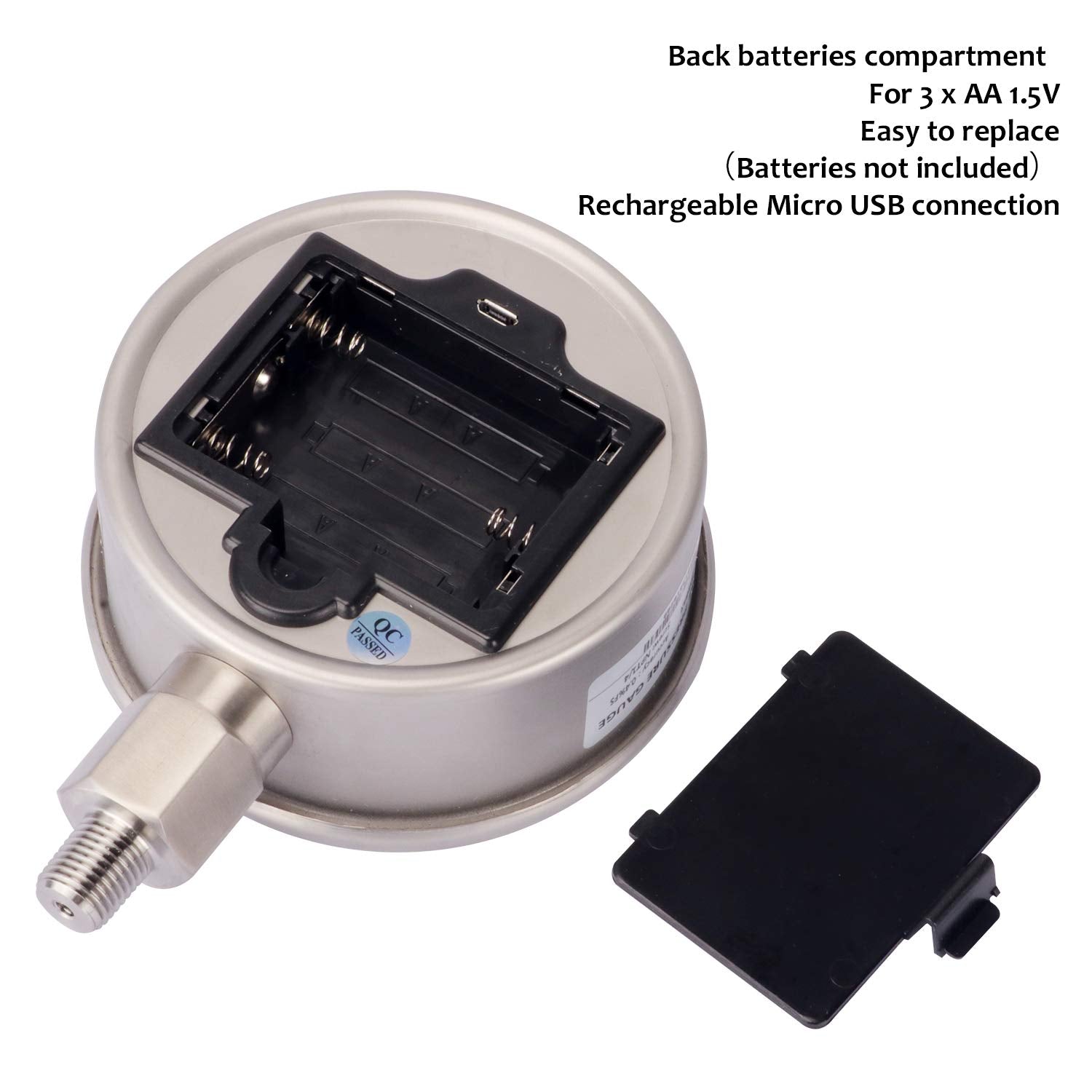

Input Voltage : 4.5V (three 1.5V AAA batteries) or micro USB input
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum
Case : 304 stainless steel
Wetted parts : 304 stainless steel
IP Class : IP54

How to operate :

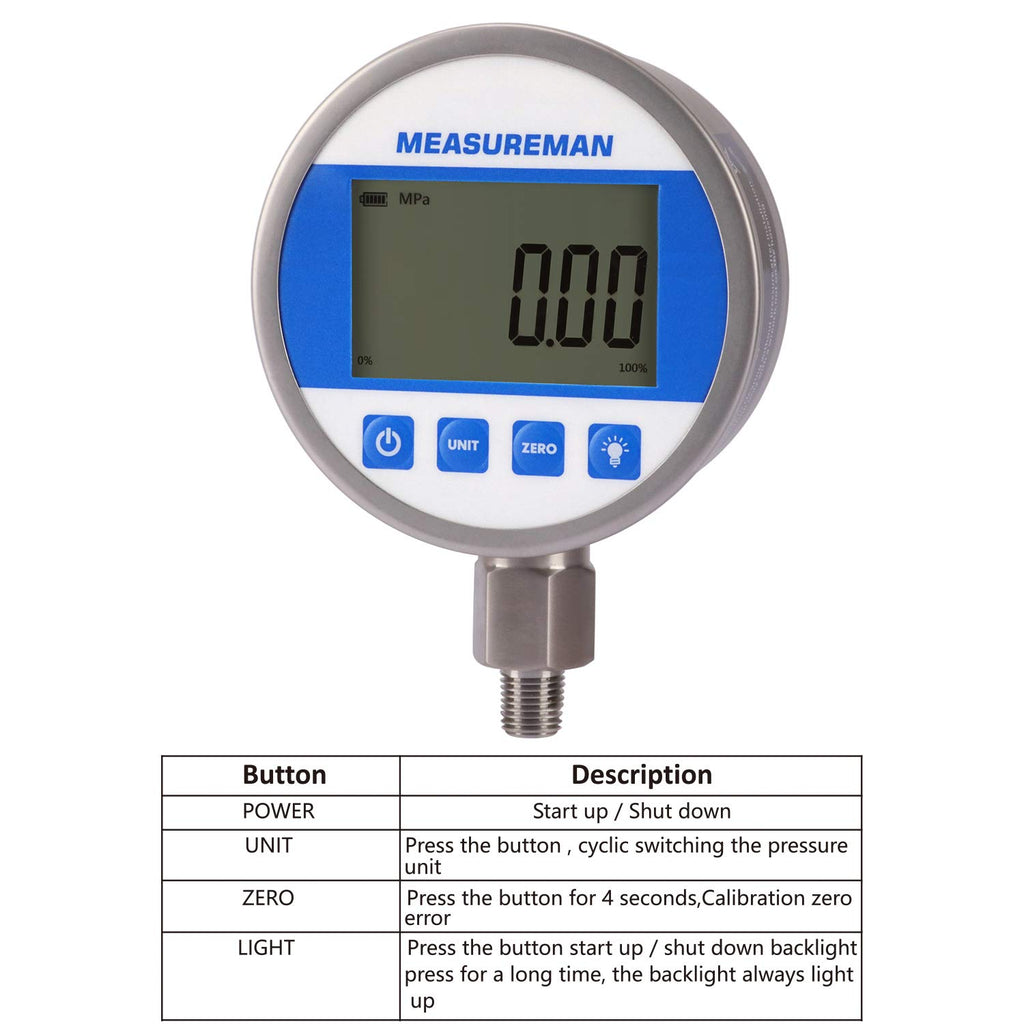

Button Description :
Power button : Start up/Shut down
UNIT button : Press the button, cyclic switching the pressure unit Pressure the 'UNIT' botton, Show the maximum minimum value, corresponding to the MAX/MIN logo light up.
ZERO button : Press Zero button for 4 seconds, Calibration zero
LIGHT button : Press Light button start up/shut down backlight, Press for a long time, the back-light always light up

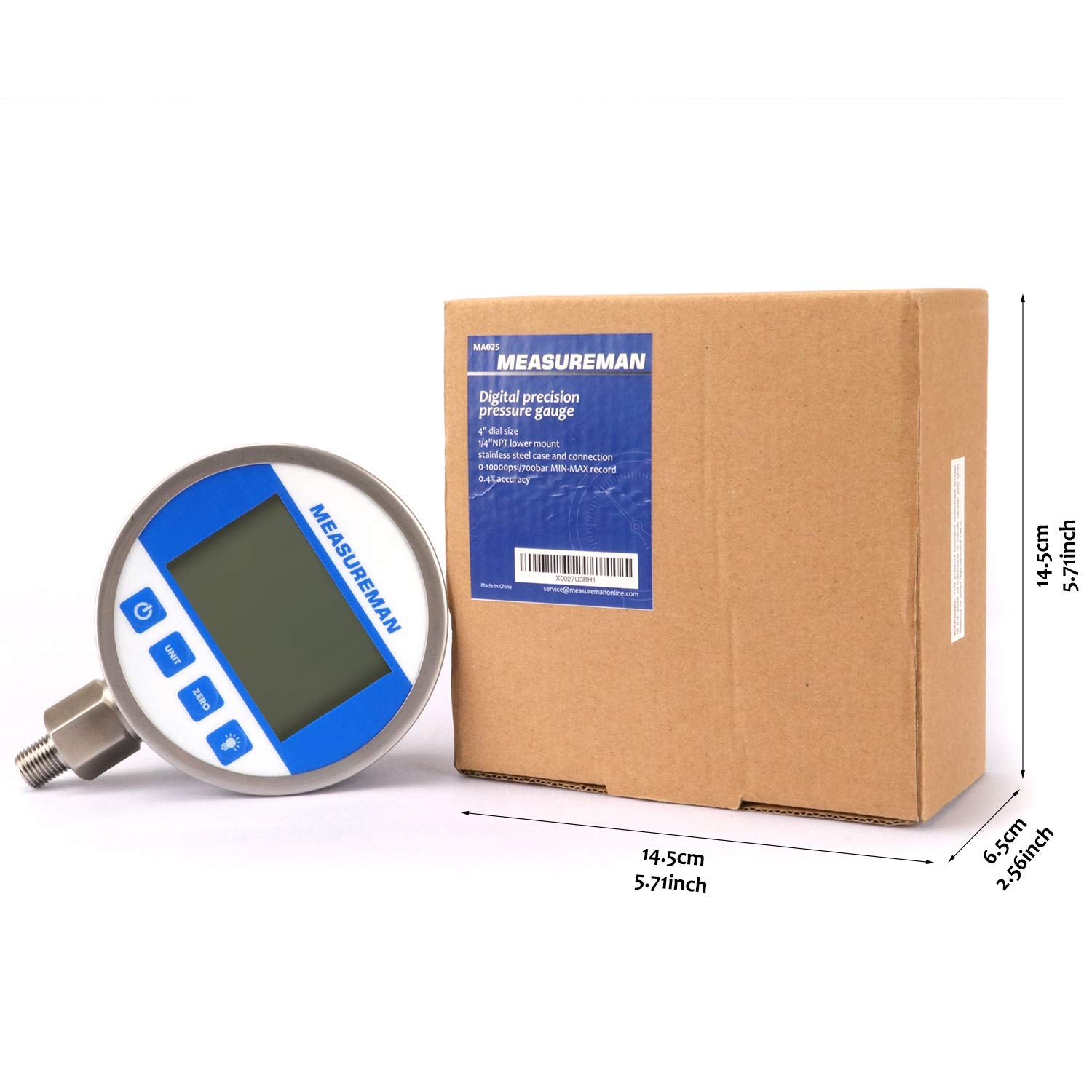

Package Content:
1 x Digital Pressure Gauge,
1 x Operation Manual.

Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The 'Measureman' branded products are the combination of continuous good quality and affordable price. 'Measureman' products are selected and designed by professional engineers.
